Plain BOPP Film

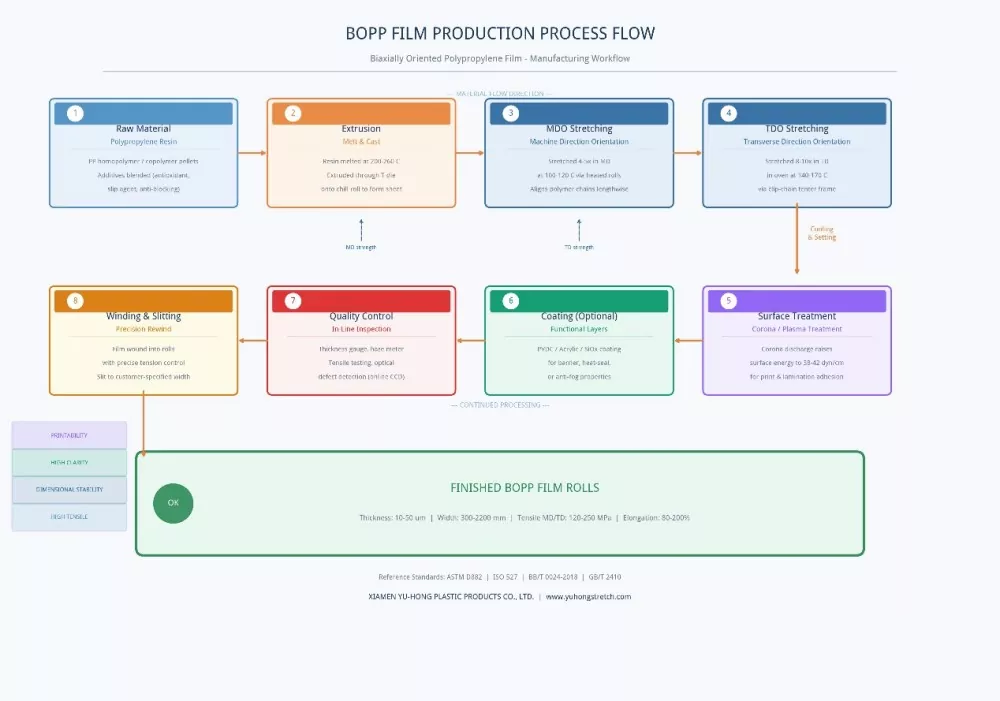

Yuhong Plastic produces Plain BOPP Film, also referred to as biaxially oriented polypropylene film, at its manufacturing facility in Xiamen, China. The film is made by extruding polypropylene resin into a sheet and then stretching it in both the machine direction and transverse direction. This biaxial stretching process creates balanced molecular orientation, which improves tensile strength, dimensional stability, transparency, and processing performance.

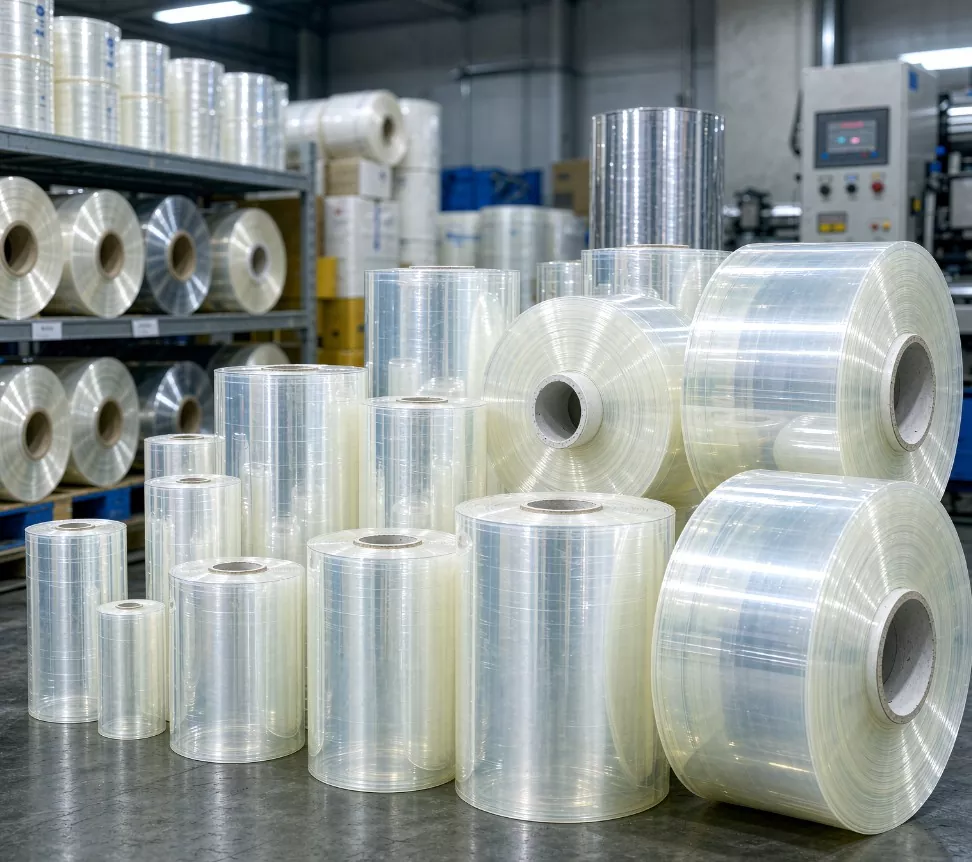

After stretching, the BOPP lamination film receives a surface treatment to support printing and lamination adhesion. It is then wound into rolls according to customer specifications. The product is available in a range of thicknesses from 18 μm to 50 μm and can be supplied as standard rolls, jumbo rolls, or custom slit rolls.

Technical Specifications

Detailed technical data sheets for each grade are available upon request.

Thickness, Basis Weight and Yield Reference

Material and Process Notes

Clear BOPP film is produced from polypropylene resin. The biaxial orientation process aligns polymer chains in two perpendicular directions, which increases stiffness and tensile strength compared with cast polypropylene film. The Food grade BOPP film also develops better optical clarity and lower haze.

The surface treatment applied after orientation is corona treatment or flame treatment, depending on the grade. This treatment increases surface energy and improves ink wetting and adhesive bonding. Untreated film is also available for applications where surface treatment is not required.

Application Areas

• Food packaging for snacks, bakery products, confectionery, and dry goods

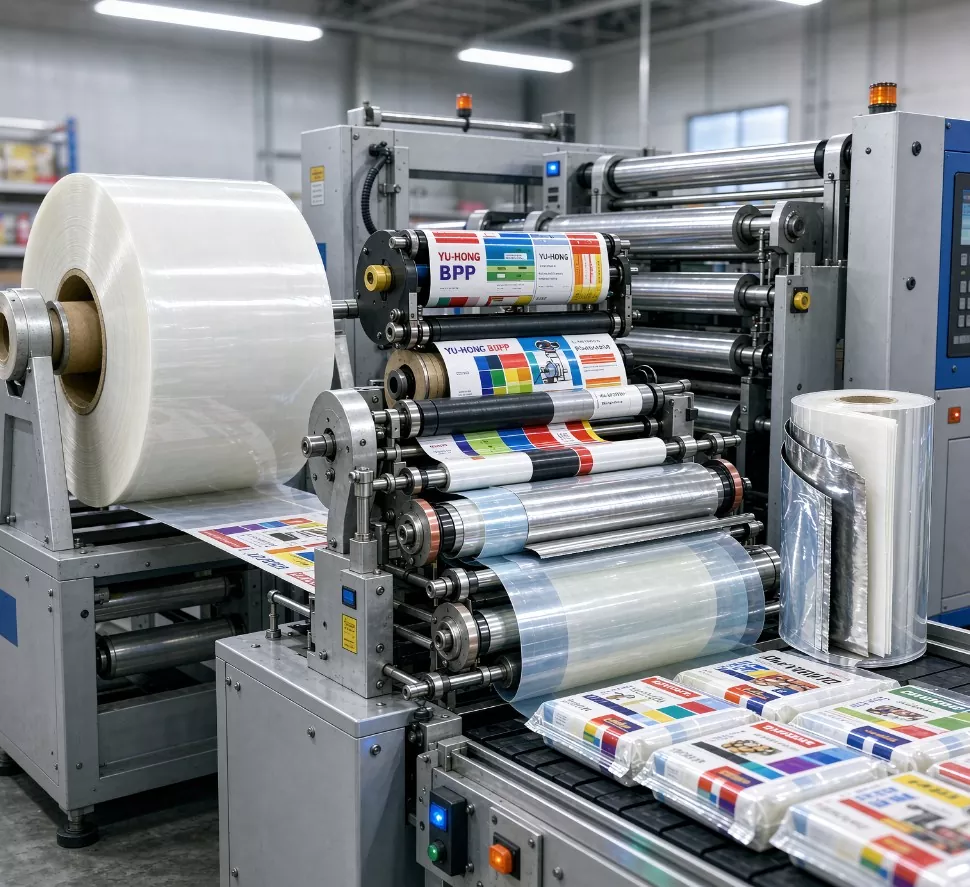

• Print lamination outer layer in flexible packaging structures
• Adhesive tape backing for carton sealing and general purpose tape
• Flower wrapping and decorative film
• Label facestock in some converted forms
• Industrial overwrap where clarity and stiffness are required

Food Contact Compliance

For packaging that will come into contact with food, Yuhong can supply Plain BOPP Film made from virgin polypropylene resin. The material is suitable for compliance with FDA 21 CFR 177.1520 and EU Regulation No. 10/2011. Supporting documentation, including declarations of compliance, is available for customer qualification.

Quality Control and Traceability

Yuhong follows ISO 9001:2015 quality management procedures. Incoming resin is inspected before production. During film manufacturing, thickness and optical properties are monitored continuously. Finished rolls are sampled for tensile strength, elongation, haze, gloss, coefficient of friction, and wetting tension.

Each batch has a unique identification number. Records cover raw material lot, production parameters, online inspection data, and final test results. These records are maintained for traceability and can be provided to customers during audits.

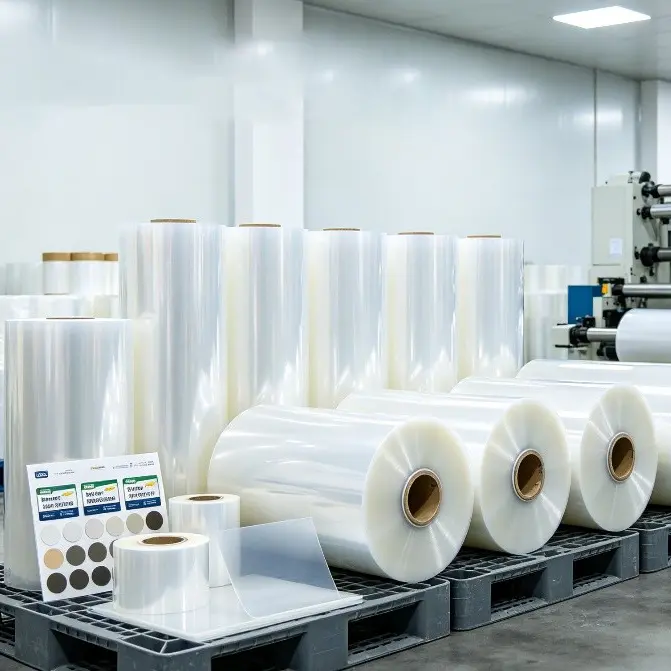

Typical Roll Configurations

Yuhong supplies BOPP film in the following standard formats. Custom specifications are available for volume orders.

Frequently Asked Questions

1. What is the difference between treated and untreated BOPP film?

Treated film has a modified surface that increases adhesion for printing inks and lamination adhesives. Untreated film has lower surface energy and is used when the surface will not be printed or laminated. Yuhong can supply film with one side treated, both sides treated, or untreated, depending on the application.

2. How should BOPP film be stored before use?

Store rolls in a clean, dry area at 15°C to 30°C and 40% to 60% relative humidity. Keep rolls in their original packaging until ready for use. Avoid direct sunlight and high temperatures. Under these conditions, the General purpose BOPP film retains its properties for 12 months from the production date.

3. Can Yuhong provide BOPP film in custom widths and lengths?

Yes. Custom slitting is available. The minimum order quantity depends on the thickness and width. Yuhong technical staff can recommend roll specifications based on your converting or packaging equipment.

4. Is the film suitable for direct food contact?

Yuhong can supply food contact grades made from virgin resin. These grades are suitable for compliance with FDA and EU food contact regulations. Documentation can be provided to support your supplier approval process.

5. What is the lead time for standard BOPP film orders?

For standard thicknesses and widths that are in regular production, shipment can usually be arranged within 7 to 15 days after order confirmation. Custom slit rolls or special thicknesses may take 20 to 30 days. The sales team will confirm a specific schedule at the time of quotation.

6. Can I get samples for printing and lamination trials?

Yes. Sample rolls are available. You can test the film on your printing press or laminator to confirm ink adhesion, surface treatment, and machine compatibility before placing a bulk order.
