Special and Functional Packing Tapes

Yuhong Plastic manufactures its full line of Special and Functional Packing Tapes using upgraded BOPP base film produced in-house. Each variant, including colored packing tape, UV-resistant packing tape, anti-static packing tape, and low-noise packing tape, receives a dedicated formula adjustment to deliver targeted performance while maintaining reliable adhesion and tensile toughness.

Product Variants and Standard Configurations

Tape Type	Base Film	Functional Property	Width Options	Common Roll Lengths	Core Size
Colored packing tape	Upgraded BOPP (self-produced)	Color stability for cargo classification	24 mm – 72 mm	50 m – 1000 m	3 inch
UV-resistant packing tape	Upgraded BOPP (self-produced)	Resistance to sun exposure and outdoor aging	24 mm – 72 mm	50 m – 500 m	3 inch
Anti-static packing tape	Upgraded BOPP (self-produced)	Static dissipation for ESD-sensitive goods	24 mm – 72 mm	50 m – 500 m	3 inch
Low-noise packing tape	Upgraded BOPP (self-produced)	Reduced unwinding noise	24 mm – 72 mm	50 m – 500 m	3 inch

Custom widths, lengths, and core sizes are available. Above values reflect standard inventory.



How Each Variant Solves Practical Packaging Problems

Colored packing tape

Used when quick visual identification of shipments is required. The tape holds bright, even color without fading under normal warehousing conditions. This removes the need for additional sorting labels. Adhesion and tear resistance are maintained, with no glue residue or overflow.



UV-resistant packing tape

Formulated for packaging that stays outdoors or under direct sunlight for extended periods. Typical environments include open-air building material yards, outdoor construction sites, and export containers waiting in port. The tape's UV stabilizer package helps prevent embrittlement and peeling during prolonged exposure.



Anti-static packing tape

Developed for packaging that comes into contact with static-sensitive electronic components. It controls static buildup, lowering the risk of ESD events during packing, transport, and unpacking.

Low-noise packing tape

Designed for environments where quiet operation matters, such as offices, night-shift packing lines, and retail backrooms. Unwinding noise is noticeably lower than standard BOPP tape, while adhesion strength and compatibility with common handheld dispensers are preserved.

Technical Performance Data

The following data is obtained from Yuhong's in-house quality testing under controlled conditions. Values are representative of standard functional tape production batches.

Test Item	Test Method	Typical Value (Standard BOPP Tape)	Colored	UV-Resistant	Anti-Static	Low-Noise
Total thickness	Micrometer	40 – 50 µm	42 – 50 µm	42 – 50 µm	42 – 50 µm	42 – 50 µm
Peel adhesion (180°)	GB/T 2792 / ASTM D3330	≥ 5.0 N/25mm	≥ 4.8 N/25mm	≥ 4.8 N/25mm	≥ 4.5 N/25mm	≥ 4.8 N/25mm
Tensile strength	GB/T 7753 / ASTM D3759	≥ 30 N/cm	≥ 30 N/cm	≥ 30 N/cm	≥ 28 N/cm	≥ 30 N/cm
Elongation at break	GB/T 7753 / ASTM D3759	120 – 160 %	120 – 160 %	120 – 160 %	110 – 150 %	120 – 160 %
Unwind noise level (relative)	Internal acoustic test	—	Normal	Normal	Normal	Significantly reduced
Surface resistance (anti-static)	ANSI/ESD STM11.11	—	—	—	10⁶ – 10⁹ Ω	—
UV aging (retained adhesion after 500 h QUV)	ASTM G154 cycle	—	—	≥ 80%	—	—

Testing standards are indicated where applicable. Exact values may vary slightly by batch; batch-specific test reports are available upon request.

Quality Assurance and Certifications



Every functional tape batch is verified before shipment. QC protocols include:

Incoming raw material screening (BOPP film and adhesive). Batches that fail static index, adhesion, or thickness checks are rejected before production.

In-line spot checks each shift covering unwind force, adhesion to steel, color consistency, and surface resistance for anti-static grades.

Finished product lot testing including peel adhesion, tensile strength, elongation, and, for UV-resistant tape, accelerated UV aging checks.

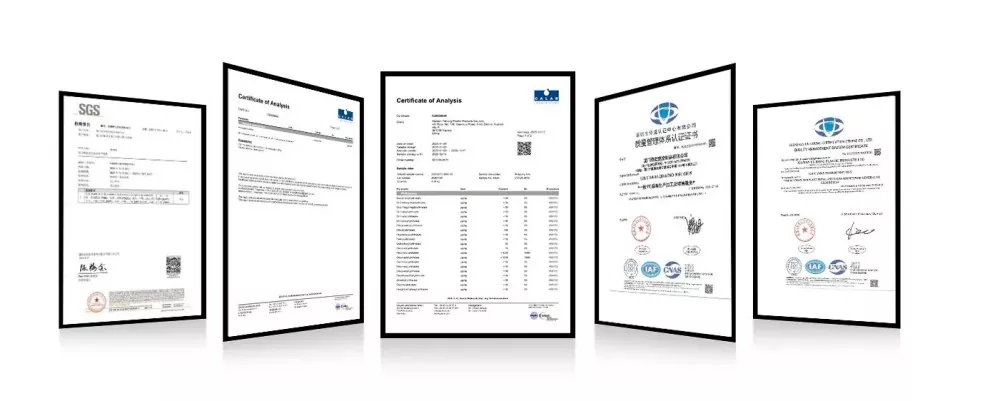

Relevant certifications and compliance documents held by Yuhong Plastic:

ISO 9001:2015 Quality Management System

RoHS compliance (lead, mercury, cadmium, hexavalent chromium, PBBs, PBDEs)

REACH regulation conformity for substances of very high concern (SVHC)

Third-party ESD testing reports for anti-static packing tape, conducted by accredited laboratories in accordance with ANSI/ESD S541 or IEC 61340-5-1

Additional test reports from SGS and other recognized institutes are kept on file and available for customer audits



About Yuhong Plastic's Manufacturing Capability

Yuhong Plastic operates its own BOPP film production lines and adhesive coating equipment at its Xiamen facility. With years of specialization in adhesive tape manufacturing, the company supplies functional packing tapes to distributors, converters, and industrial end-users across Europe, North America, and Southeast Asia. In-house control over base film production allows consistent quality and direct formula adjustments for functional variants. All export operations are handled by Yuhong's dedicated foreign trade subsidiary, and 100% of functional tape production takes place in the company's own plant.

Frequently Asked Questions

Does low-noise packing tape have weaker adhesion than standard BOPP tape?

No. In-house peel adhesion tests show comparable values to standard BOPP tape. The low-noise feature is achieved through resin formulation and unwind mechanics, not by reducing adhesive coating weight.

Can I use low-noise tape in a standard handheld dispenser?

Yes. It is designed for use with all common handheld tape guns and automatic case sealers.

How long does the color remain bright on colored packing tape? Under typical indoor storage conditions (out of direct sunlight, moderate temperature), color stability is maintained for the product's intended shelf life. No visible fading is observed in standard warehousing scenarios. For accelerated aging data, please contact our technical team.

What testing standard applies to the anti-static packing tape?

Yuhong Special and Functional Packing Tapes are tested for surface resistance according to ANSI/ESD STM11.11, and its ESD packaging performance is evaluated with reference to ANSI/ESD S541 or IEC 61340-5-1, depending on the customer's compliance requirements. Third-party test reports are available.

Is the UV-resistant tape suitable for multi-season outdoor storage?
It is formulated for prolonged sun exposure. For harsh environments involving extreme temperature swings, high humidity, and continuous UV load, we recommend sharing your specific storage conditions so our technical team can confirm suitability.

Do you provide batch-specific test reports?

Yes. All QC test records are kept on file. During supplier qualification or periodic audit, we can provide copies of relevant batch test data, including adhesion, tensile, and ESD reports.
