Yuhong is a professional China supplier of Anti-Static PE Film, focusing on the development and production of static-dissipative PE wrapping materials for industries requiring electrostatic protection. Unlike traditional films that rely on temporary surface coatings, Yuhong integrates anti-static additives into the resin during extrusion to help maintain stable performance throughout the product life cycle. The film combines static control, mechanical strength and customization flexibility, making it suitable for protecting sensitive electronic components during production, handling and transportation.
1. Permanent Static Dissipation Performance
The anti-static additives are mixed into the PE resin before extrusion instead of being applied as a surface coating. This structure helps prevent the anti-static function from wearing away or transferring to packaged products during use.
2. Reliable Mechanical Strength
The film maintains good stretching ability and puncture resistance compared with conventional PE stretch films, allowing it to meet different wrapping requirements without sacrificing packaging performance.
3. Clean Material Formula
The film is designed without amines, silicones or loose additives that may affect sensitive components, making it suitable for applications requiring cleaner packaging conditions.
4. Stable Performance Under Different Conditions
The film is tested for performance stability under temperatures from -10°C to 60°C, helping maintain reliable protection in different working environments.
Yuhong performs inspection for each production batch of Anti-Static PE Film to ensure consistency in thickness, resistance, tensile strength and other important performance indicators. The following specifications are based on standard production requirements.
| Parameter | Standard Spec | Custom Options | Test Standard |
| Thickness | 15μm - 35μm | 12μm - 55μm | ASTM D374 |
| Width | 150mm - 500mm | 500mm - 1500mm | ASTM D5947 |
| Surface Resistance | 10^8 - 10^11 Ω/sq | 10^6 - 10^11 Ω/sq | ASTM D257 |
| Static Decay | < 2.0 seconds | < 0.5 seconds | FTMS 101C 4046 |
| Tensile MD | ≥ 25 MPa | ≥ 35 MPa | ASTM D882 |
| Elongation | ≥ 400% | ≥ 500% | ASTM D882 |
| Puncture Resistance | ≥ 5.0 N | ≥ 8.0 N | ASTM D5748 |
| Cling Force | 1.5 - 3.0 N/cm | Adjustable | Internal Method |
| Roll Length | 300m - 1500m | Custom lengths | - |
| Core Size | 3 inch (76mm) | 1.5 inch (38mm) | - |
Compared with regular PE film, Yuhong's static dissipative solution provides more controlled electrostatic protection for sensitive products.
| Performance | Regular PE Film | Yuhong Anti-Static PE Film |
| Surface Resistance | 10^13 - 10^15 Ω/sq (insulator) | 10^8 - 10^11 Ω/sq (static dissipative) |
| Static When Unwinding | 10,000V+ (static generation risk) | <100V |
| ESD Protection | No static protection | Continuous dissipation |
| Protection Lifespan | Not available | Permanent, built into the film |
| Residue | Standard performance | Amine-free, silicone-free, no transfer |
| Strength | Good | Same or better than regular film |
| Cleanroom Use | Not recommended | Works in Class 10,000 cleanrooms |
| Price Premium | Base | Approximately 15-25% more than standard film |

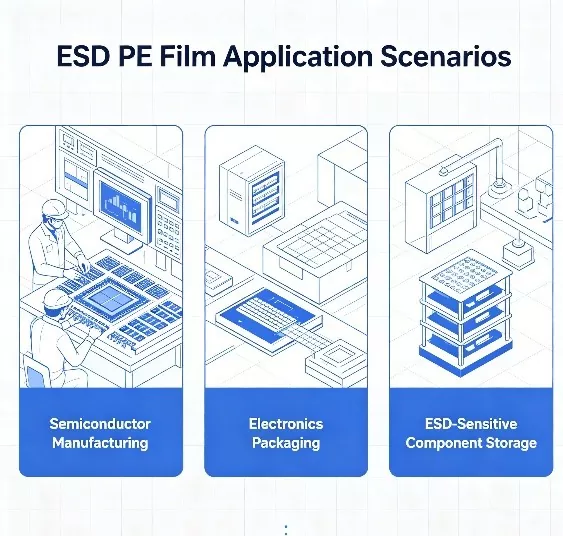

1. PCB and Electronic Component Packaging

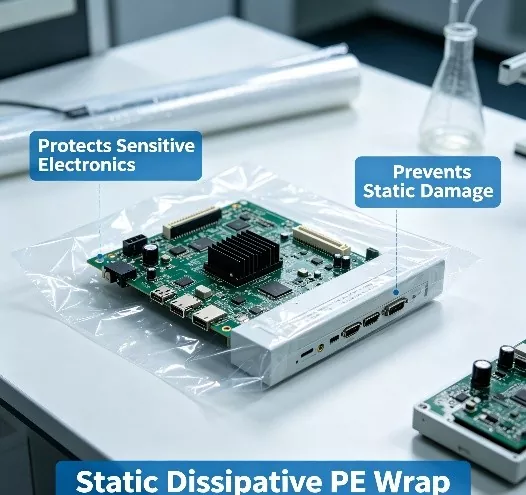

The Anti-Static PE Film is suitable for packaging circuit boards, IC components, capacitors, connectors and other electronic parts during storage, transportation and production processes.
2. Medical and Precision Equipment
Used for protecting equipment containing circuit boards, optical components and precision measurement parts where electrostatic control is important.
3. In-Plant Material Handling
The film can be used for wrapping work-in-progress materials when transferring components between different production areas.
4. Cleanroom Packaging
The low-outgassing version is suitable for semiconductor and pharmaceutical cleanroom environments where contamination control is required.
5. Automotive Electronics
Suitable for packaging ECU modules, sensor components and other automotive electronic products that require static protection.
6. IT and Server Hardware
Used for protecting servers, switches, storage devices and other sensitive electronic equipment during handling and transportation.
1. Raw Material Inspection
Each batch of anti-static masterbatch is checked before production to help ensure material consistency.
2. Production Process Testing
During manufacturing, production staff monitor important performance indicators including thickness, resistance and cling force.
3. Finished Roll Inspection
Finished rolls are sampled and tested for tensile strength, elongation, puncture resistance and surface resistance before shipment.
4. Final Shipment Check
Before delivery, Yuhong verifies roll quantity, packaging condition and product labeling to ensure shipment accuracy.
Yuhong provides quality documents including ISO 9001:2015, SGS RoHS compliance and GALAB performance testing reports.
Available customization options include:
1. Size Customization
Film width, thickness and roll length can be customized according to different wrapping equipment and application needs.
2. Color Options
Available options include clear, black opaque, white, ESD pink and blue for different product identification requirements.
3. Performance Adjustment
Film performance can be adjusted according to different wrapping speeds, storage conditions and application environments.
4. Printing Service
Logos, handling instructions, ESD warning labels and lot numbers can be printed on the film.
5. Special Functions
Additional features such as UV resistance, anti-fog and VCI anti-rust functions can be combined with anti-static performance.
1. Experienced Film Manufacturer
Founded in 2008, Yuhong has more than 17 years of experience in stretch film production. With professional manufacturing knowledge and practical application experience, Yuhong focuses on developing stable packaging film solutions for different industries.
2. Stable Production Capability
Yuhong operates a 3,000㎡ production facility with an annual production capacity of 5,000 tons. The factory is equipped with advanced production equipment and inspection systems to support consistent product supply.
3. Professional Quality Management
Yuhong follows the ISO 9001:2015 quality management system and provides SGS RoHS compliance and GALAB performance testing reports to support product quality verification.
4. Flexible Product Solutions
With experience in customized film production, Yuhong can provide different options including film size, thickness, colors, printing and special functional requirements according to application needs.
5. Reliable Cooperation Support
Yuhong focuses on long-term cooperation by providing professional communication, sample testing support and technical guidance to help customers select suitable film solutions.
A: Anti-Static PE Film is designed for packaging and protecting static-sensitive products such as PCB boards, electronic components, medical equipment and precision instruments. It helps reduce electrostatic risks during storage, handling and transportation.
A: Yes. Yuhong supports customization of film thickness, width, roll length, colors, printing and additional functions according to different application requirements.
A: When stored in a cool and dry place away from direct sunlight, the film can maintain its performance for approximately 12-18 months.
A: Yuhong accepts payment methods including T/T and L/C at sight for suitable orders. Specific payment terms can be discussed according to cooperation requirements.
A: Standard specifications can usually be shipped within 7-10 days, while customized orders generally require 15-25 days depending on production requirements.
A: Yes. Yuhong can provide special functions such as UV resistance, anti-fog and VCI anti-rust features combined with anti-static performance according to application requirements.
A: Yuhong can work with logistics partners to support different delivery solutions according to destination requirements.
