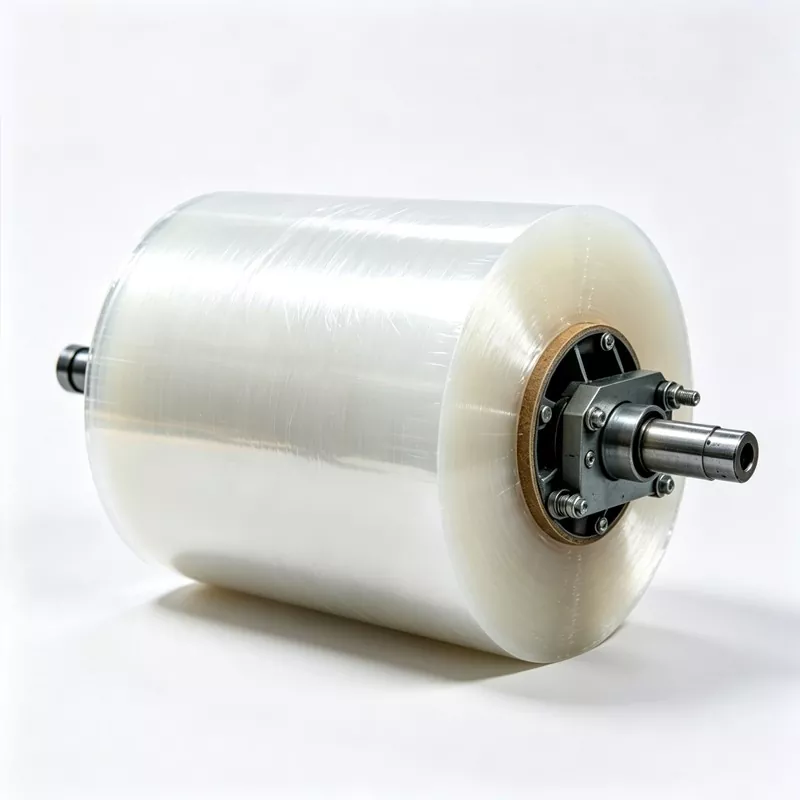

Jumbo Roll Machine Stretch Film

Yuhong Jumbo Roll Machine Stretch Film is manufactured for operations that benefit from longer running time and fewer roll changes. The larger roll format supports continuous wrapping on automatic equipment, with controlled unwinding and stable tension characteristics.

Produced by Xiamen Yuhong Plastic, a stretch film manufacturer with more than 18 years of experience and an annual production capacity of approximately 5,000 tons, this jumbo machine stretch wrap uses high-purity LLDPE resin and controlled winding methods. The product is intended for use on automatic pallet wrappers, film converting lines, and other high-volume packaging systems.

Yuhong jumbo machine stretch wrap is suitable for pallet wrapping, stretch film converting, logistics distribution, and industrial packaging operations. Roll weight, film length, core size, and film specifications can be adjusted according to customer equipment and production requirements.

Selection Considerations for Jumbo Rolls

1. Longer Running Time Reduces Roll Change Frequency

For continuous packaging operations, the time spent changing rolls directly affects daily throughput. Compared with standard rolls, jumbo rolls provide a larger film quantity per roll, which reduces the number of changeovers required during a shift.

Yuhong jumbo rolls are produced in larger formats to support extended operation on automatic wrappers and rewinding machines. A single roll can replace multiple smaller rolls, helping to maintain production continuity and reduce manual handling.

2. Compatibility with Automatic Wrapping and Rewinding Equipment

Automatic packaging machines require film with stable tension, consistent feeding, and uniform roll structure. Poor winding quality can cause uneven unwinding, film shifting, or machine stops.

Yuhong large roll machine film is wound with controlled tension to maintain uniform roll density from core to outer layer. This supports smooth operation on automatic pallet wrappers, slitting machines, and rewinding lines without frequent operator adjustment.

Machine compatibility is evaluated through production testing and batch inspection, with attention to roll straightness, unwind force, and film profile.

3. Balanced Stretch and Holding Force for Heavy Loads

Stretch film for industrial use must combine sufficient elasticity with adequate holding power. A film that stretches too easily may not stabilize a load, while one with insufficient elongation may break during high-speed application.

Yuhong jumbo machine stretch wrap uses a controlled LLDPE formulation to provide a balance of stretchability and toughness. The film maintains reliable cling and load retention during handling, storage, and transit.

This product is used for palletizing heavy industrial goods, manufactured components, and export shipments that require stable load protection.

4. Reduced Material Waste at Shift Changes

In addition to fewer roll changes, jumbo rolls can reduce the amount of partially used film left at the end of a production period. Smaller rolls often leave residual film that cannot be efficiently used, while larger rolls may be consumed more completely.

Machine Compatibility and Specification Selection

Different packaging machines have different mandrel sizes, speed ranges, and tension requirements. Selecting the correct jumbo roll specification helps avoid equipment issues and ensures stable operation.

Yuhong provides technical recommendations based on the customer's equipment type, daily consumption, and application conditions.

1. Roll Weight

Roll weight influences running time and replacement frequency. Yuhong standard jumbo rolls are available from 15 kg to 25 kg, with custom options up to 30 kg.

15–18 kg rolls are suitable for medium-volume operations that require improved efficiency over standard rolls. 20–25 kg rolls are commonly selected for automatic pallet wrapping lines and continuous production environments. Heavier rolls up to 30 kg can be customized for large industrial systems where maximum running time is needed.

2. Core Size

The core inner diameter must match the machine mandrel. Yuhong provides standard 3-inch (76 mm) and 6-inch (152 mm) core options.

The 3-inch core is suitable for general industrial wrapping equipment. The 6-inch core is recommended for jumbo rolls above 20 kg or machines that require stronger core support. Custom core diameters can be produced according to specific equipment requirements.

3. Film Length

Film length determines the running time per roll. Yuhong large roll machine film can be produced in lengths from 1,500 m to 3,000 m, depending on film thickness, roll weight, and customer requirements.

Longer film lengths reduce operator intervention and help maintain consistent production flow in continuous wrapping applications.

Technical Specifications

Full technical data sheets (TDS) are available upon request.

Technical Performance and Quality Stability

For industrial packaging, jumbo roll performance depends on more than film strength. Winding quality, machine compatibility, and batch consistency are equally important.

Yuhong Jumbo Roll Machine Stretch Film is produced with attention to the following factors: stable tensile strength, controlled elongation, consistent cling force, uniform thickness, and reliable unwind tension.

During manufacturing, extrusion, stretching, and winding parameters are monitored to maintain uniform roll structure and consistent running performance. This helps avoid common issues such as loose winding, uneven feeding, film breakage, and machine adjustment interruptions.

1. Controlled Unwind Tension

Unstable unwind tension can cause film wrinkles, inconsistent stretch, or sudden breaks on automatic systems. Yuhong large roll machine film uses controlled winding technology to maintain consistent tension from the beginning to the end of the roll.

This supports stable feeding and consistent wrapping quality, reducing production losses related to film handling.

2. Uniform Roll Structure and Telescoping Resistance

Large rolls require careful winding control to prevent edge movement or telescoping during storage and transport. Yuhong controls winding pressure and layer alignment to create a tight, balanced roll.

Protective packaging methods are also used to minimize deformation risks, especially for export shipments.

3. Mechanical Performance for Heavy Loads

Industrial pallet wrapping requires film that can withstand high pulling forces during application while maintaining holding power after wrapping. Yuhong high volume machine film provides balanced tensile and elongation properties, suitable for wrapping heavy or irregular loads.

The film is used in applications where reliable pallet stability is needed during handling and long-distance transport.

Application Fields

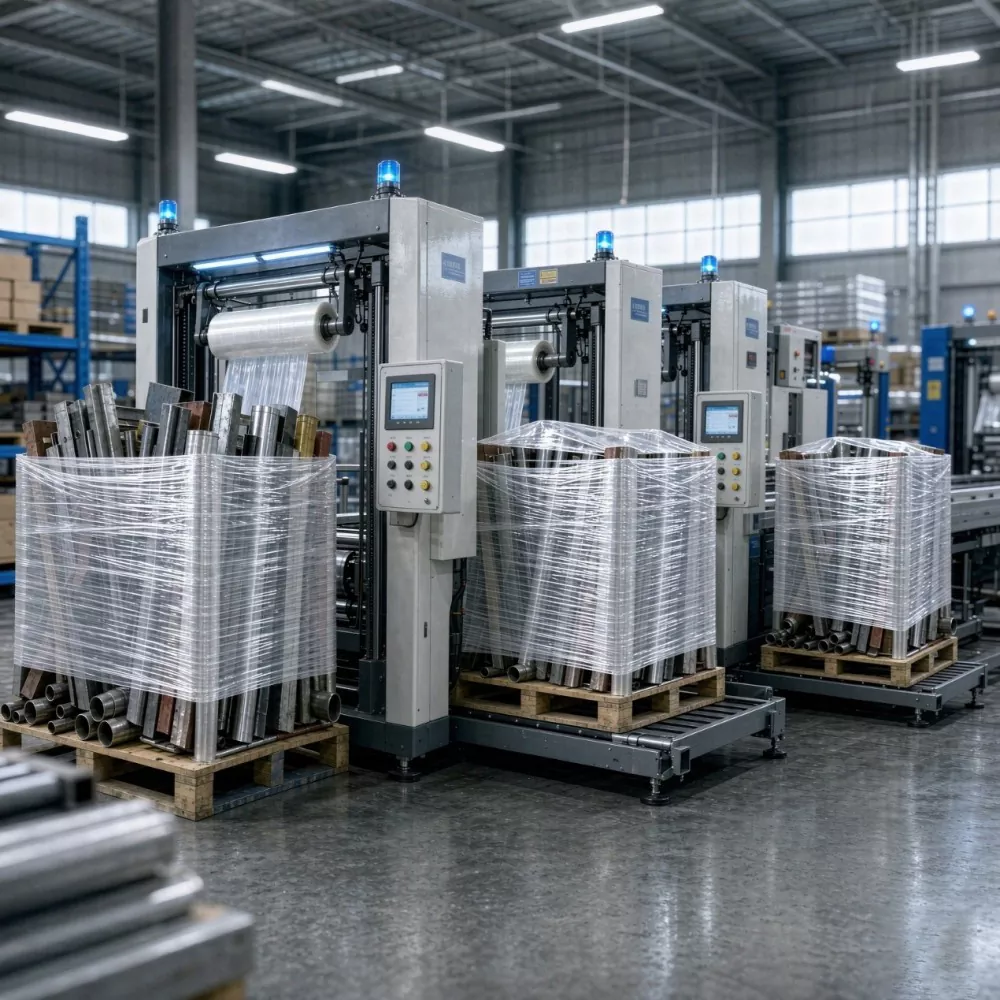

1. Manufacturing Plants and Industrial Packaging Lines

Large manufacturing facilities often wrap hundreds of pallets per day. Frequent film changes can slow down production and increase operator workload. Yuhong Jumbo Roll Machine Stretch Film is used in such environments to support longer continuous runs and reduce changeover frequency.

Typical users include producers of machinery parts, automotive components, electrical goods, chemical products, and general industrial items.

2. Logistics Centers and Distribution Warehouses

Distribution hubs depend on efficient pallet wrapping to handle large volumes. Yuhong jumbo machine stretch film is used on automated pallet wrapping cells to maintain stable packaging speed and reduce film-related interruptions.

3. Stretch Film Converting and Rewinding

Many packaging companies purchase jumbo rolls and convert them into smaller rolls for different markets. Yuhong high volume machine film offers stable roll structure and consistent material performance for slitting and rewinding. The large format helps converters reduce machine stops caused by frequent core changes.

Quality Control and Manufacturing Capability

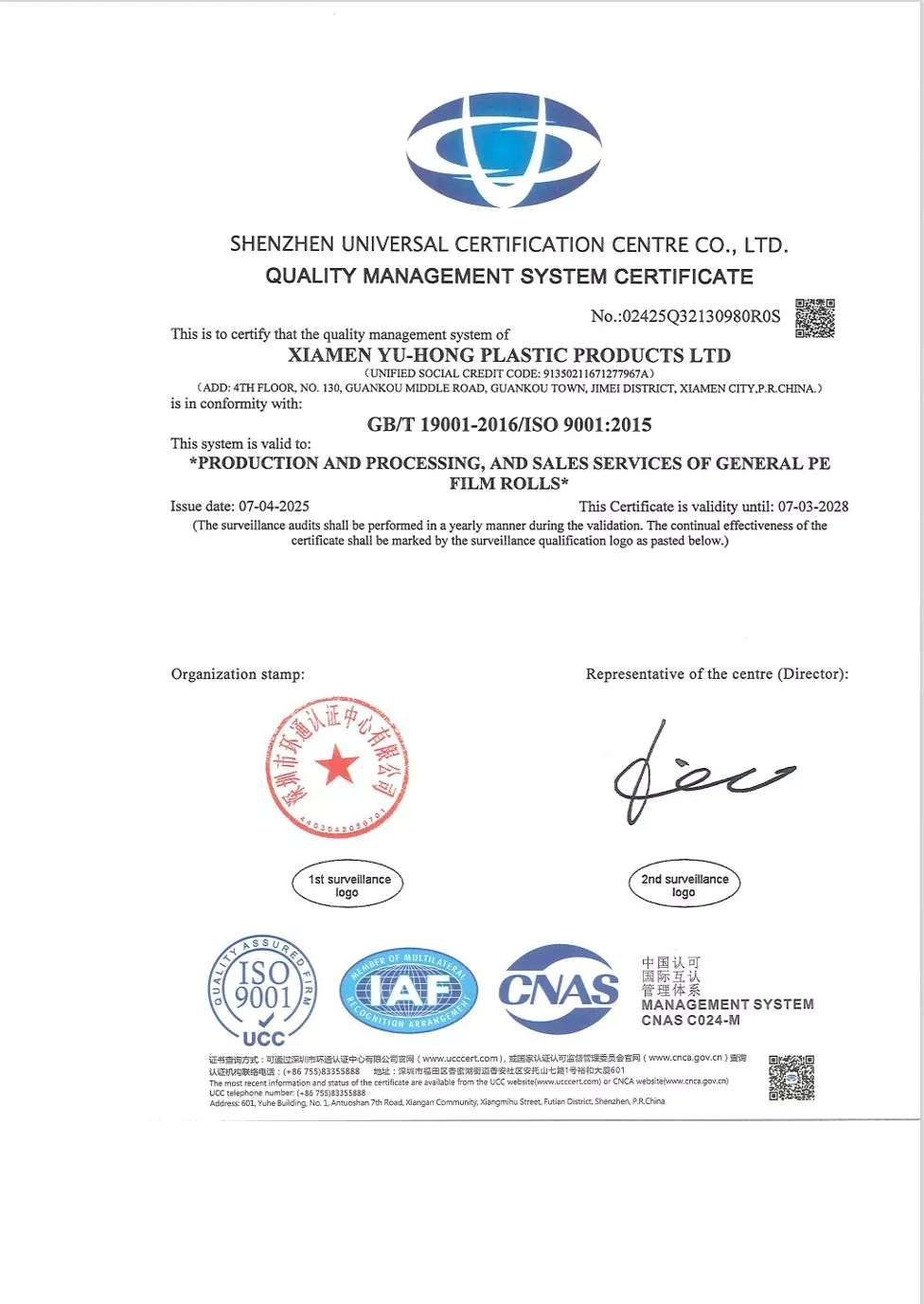

Xiamen Yuhong Plastic has more than 18 years of experience in stretch film manufacturing. The factory operates under a documented quality management system based on ISO 9001:2015, covering raw material inspection, production control, finished product testing, and shipment management.

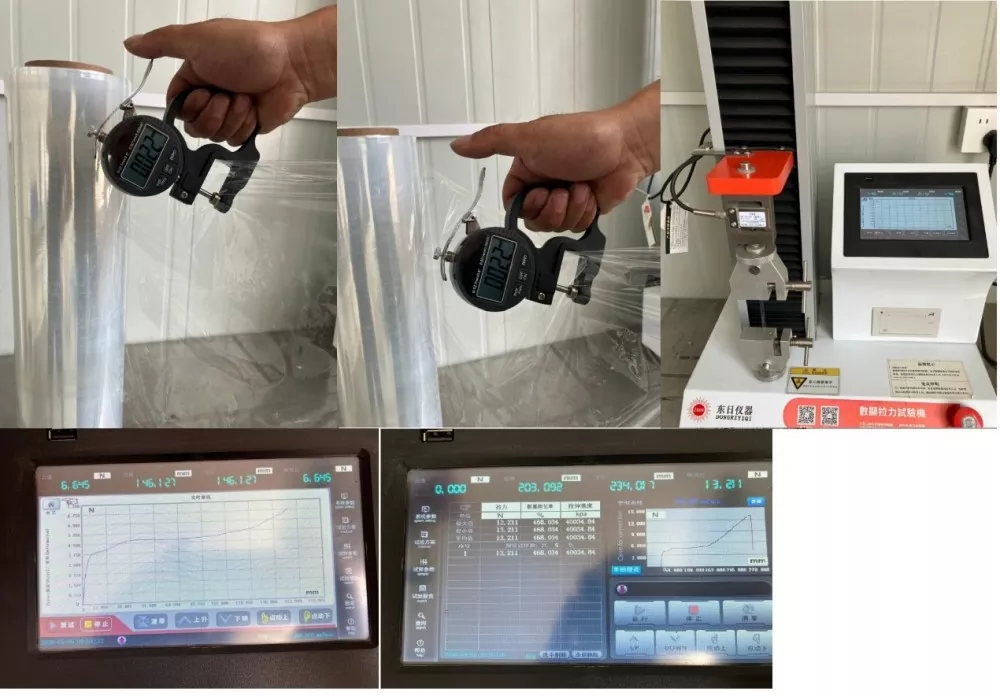

Incoming LLDPE resin is inspected before production. During manufacturing, key parameters such as film thickness, stretch performance, cling force, and winding tension are monitored. Each production batch undergoes inspection before shipment, and quality records are maintained for traceability.

Batch Traceability and Third-Party Testing

Each jumbo roll order is managed under batch control procedures. Production information, raw material data, inspection results, and shipment records are documented. This traceability supports supplier audits and long-term cooperation.

Before delivery, finished rolls are checked for winding tightness, unwind stability, appearance, and packaging condition.

Quarterly third-party testing by SGS is conducted to verify key performance indicators according to BB/T 0024-2018, including tensile strength, elongation, cling performance, and winding uniformity. Test reports and certificates are available upon request.

Packaging and Shipping Protection

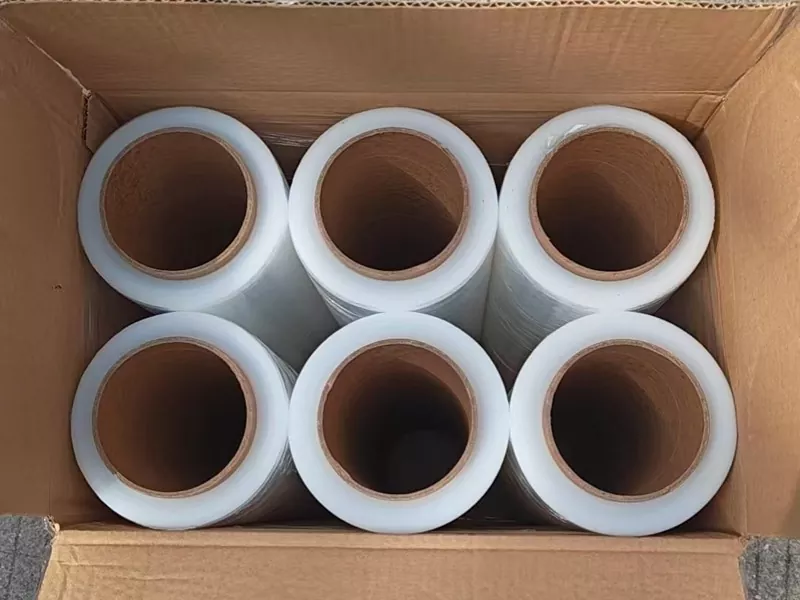

Jumbo rolls require reinforced protection during transportation due to their size and weight. Yuhong applies export packaging methods to each shipment. Each roll is wrapped with protective film to prevent dust, moisture, and surface damage. Paper sleeves are installed at both ends to protect the core and prevent deformation.

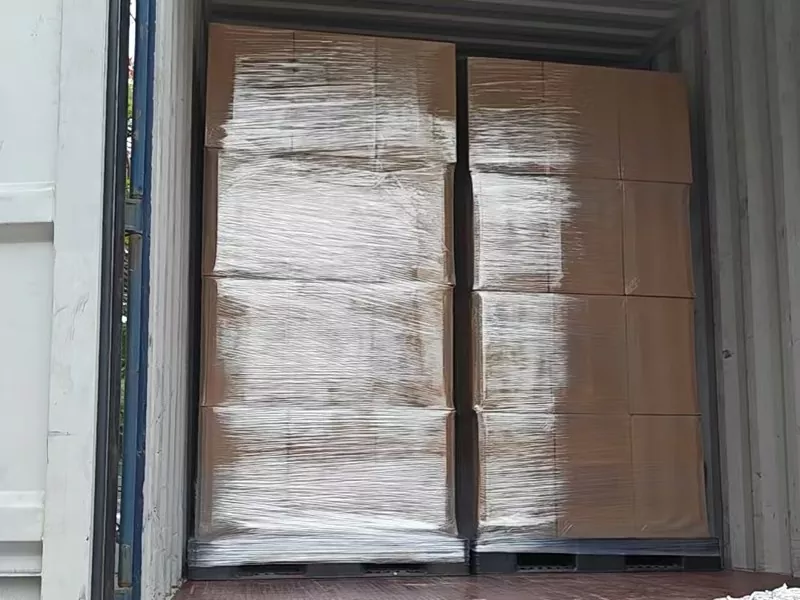

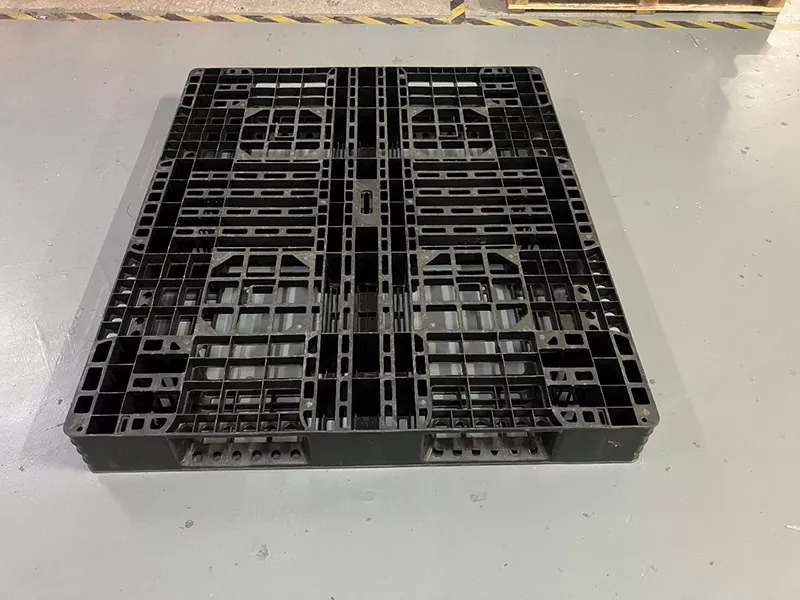

Finished rolls are placed on heavy-duty export pallets and secured before loading. Container loading photos can be provided for customer records.

Frequently Asked Questions

1. Why choose jumbo roll machine film instead of standard rolls?

Jumbo rolls reduce roll change frequency, lower operator workload, and support continuous operation on high-volume packaging lines. They are suitable for automatic wrappers and converting equipment where longer running time is beneficial.

2. How long can one jumbo roll run on an automatic wrapping machine?

Running time depends on machine speed, pallet size, wrap pattern, and film specification. In a European logistics application, a 20 kg jumbo roll supported several hours of continuous high-speed wrapping.

3. What is the difference between 3-inch and 6-inch cores?

The 3-inch core fits common industrial wrapping equipment. The 6-inch core provides stronger support for heavier rolls and larger machines. The correct size should be selected according to the machine mandrel.

4. Can jumbo rolls be shipped by sea without deformation?

Yes. Controlled winding and reinforced export packaging, including protective sleeves and pallet fixing, are used to reduce telescoping and deformation during long-distance transport.

5. Can Yuhong customize roll weight and specifications?

Yes. Roll weight, film length, core size, thickness, and selected special functions can be customized according to customer equipment and application requirements.

6. Can jumbo roll machine film be used for rewinding into smaller rolls?

Yes. Jumbo rolls are commonly used by stretch film converters who slit and rewind large rolls into smaller finished products for different markets.
